3mm Sintered Stone Facade: Seoul High-Rise Exterior Cladding Guide

$2

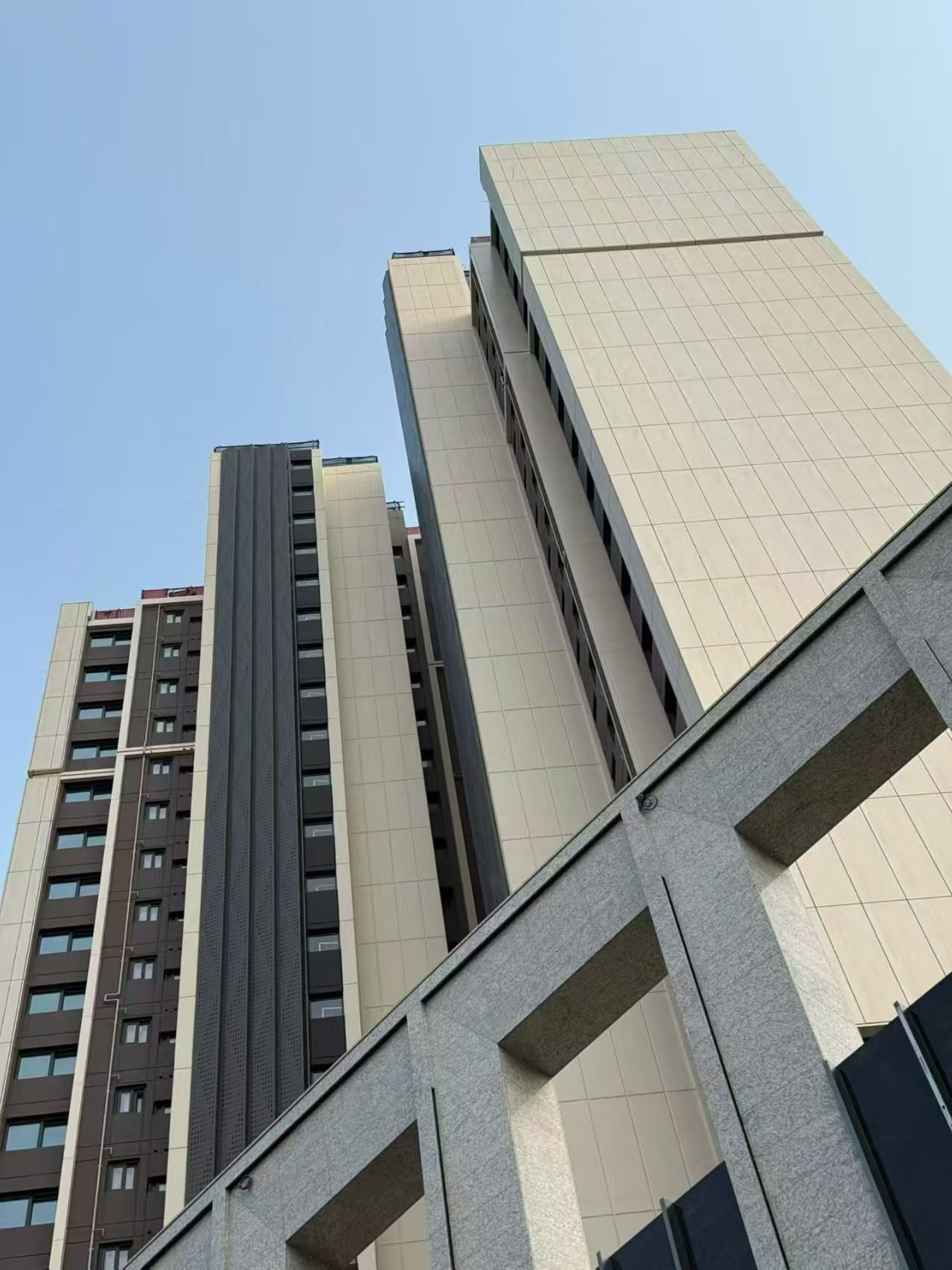

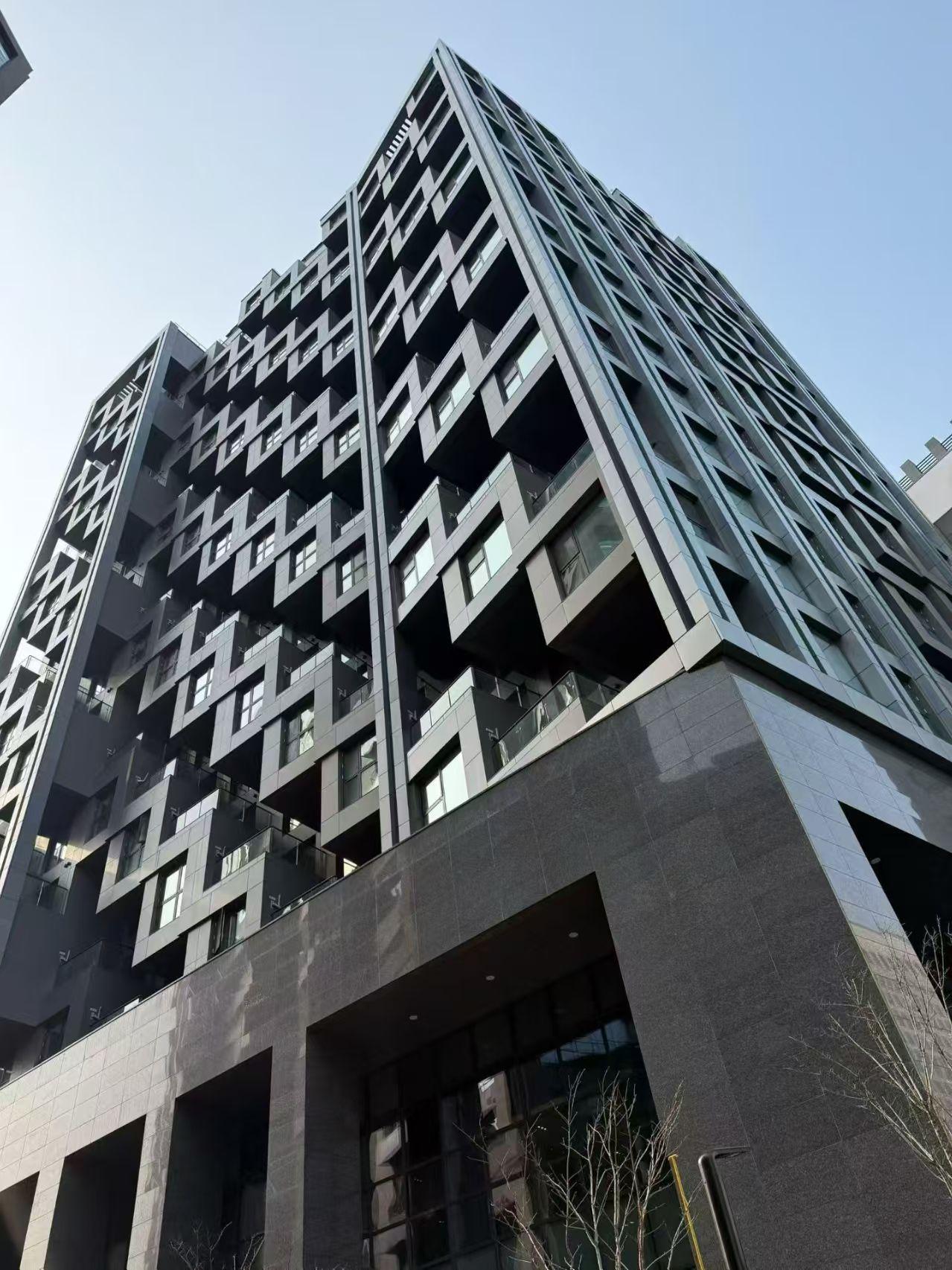

Seoul's skyline is undergoing a radical transformation. New high-rise towers across Gangnam, Songdo, and the Yongsan district are pushing the boundaries of exterior cladding design — favoring large-format panels with natural stone aesthetics over traditional ceramic tile or metal panels.

The driving force? Korea's strict building codes. The 2023 Building Act revision mandated enhanced fire performance for exterior cladding materials above 30 meters, effectively disqualifying many composite panel systems that had dominated Korean construction for decades.

Sintered stone — specifically the 3mm ultra-thin variant — has emerged as the solution that satisfies both fire safety requirements and premium design expectations.

$2

Weight: The Critical Advantage

At just 7 kg/m², 3mm sintered stone panels weigh approximately 70% less than 12mm natural stone (25-30 kg/m²) and 50% less than 6mm sintered stone (14 kg/m²).

This weight advantage has three direct implications for Seoul projects:

Renovation projects: Existing buildings can be re-clad without structural reinforcement — saving 30-40% on project costs

New construction: Reduced dead load allows smaller structural members and foundation savings

Installation speed: Lighter panels mean faster crane cycles and reduced labor costs

Fire Performance

3mm sintered stone achieves EN 13501-1 A1 classification — the highest possible fire rating for building materials. This means:

Non-combustible: produces no smoke, no droplets, no flaming particles
Compliant with Korea's 2023 exterior cladding fire regulations
Suitable for buildings of any height without additional fire barriers

Seoul Climate Resilience

Korea's climate is demanding:

Summer: Hot and humid with monsoon rainfall (June-August), temperatures reaching 35°C
Winter: Cold and dry, temperatures dropping below -15°C in Seoul
Annual cycles: Extreme thermal variation causes cracking in natural stone

Sintered stone delivers:

Water absorption < 0.1%: No efflorescence, no staining, no biological growth
Freeze-thaw resistance: Tested at -40°C to +80°C for 50 cycles with zero degradation
UV stability: No color fading even after decades of direct sun exposure
Zero porosity: No water penetration, no freeze-thaw damage

$2

Mechanical Fixing System

The standard installation for 3mm sintered stone facades in Korea uses a two-part aluminum subframe:

Primary structure: Vertical aluminum profiles fixed to the building's structural wall with stainless steel anchors

Secondary frame: Horizontal aluminum brackets with adjustable clips

Panel fixing: Mechanical clips engage pre-cut grooves in the panel edges

Key specifications for Seoul:

Subframe: 6063-T5 aluminum, minimum 2.0mm wall thickness
Anchors: 304 stainless steel
Thermal break: Minimum 12mm polyamide strip between inner and outer profiles
Joint width: 8-12mm, sealed with weatherproof silicone

Direct-Over-Clad Renovation

For renovation projects — which represent a significant portion of Seoul's facade market — 3mm panels can be installed directly over existing cladding:

Inspect existing substrate for structural integrity

Install vapor barrier and thermal insulation (50-100mm mineral wool)

Mount aluminum subframe with adjustable brackets

Fix 3mm sintered stone panels with mechanical clips

Seal joints with weatherproof silicone

This approach eliminates demolition waste and reduces project timelines by 40-60% compared to full facade replacement.

$2

Wharton's 3.5mm ultra-thin sintered stone is available in formats specifically suited for exterior cladding:

Product

Color

Best Application

Desert Beige	Warm neutral	Minimalist facades, residential towers
Light Travertine	Natural stone texture	Premium commercial buildings
Smoke Grey	Cool grey	Contemporary parametric designs
Jade White	Clean white	High-visibility landmark towers
Chestnut Brown	Rich brown	Premium residential projects
Sahara Beige	Versatile beige	Both modern and traditional designs

Standard panel size: 1,000 × 3,000mm (covers 3 m² per panel)

Custom sizes, surface finishes (polished, honed, textured), and color matching are available for projects exceeding 500 m².

$2

Parameter

Specification

Thickness	3.5mm
Weight	~7 kg/m²
Panel Size	1,000 × 3,000mm
Fire Rating	EN 13501-1 A1 (Non-combustible)
Water Absorption	< 0.1%
Flexural Strength	> 45 MPa
Compressive Strength	> 150 MPa
Freeze-Thaw	-40°C to +80°C, 50 cycles
Impact Resistance	EN 14629 Group 1
UV Resistance	No fading (5-year warranty)

📖 For kitchen applications, see our 3mm Sintered Stone Kitchen Countertop Guide.

$2

Wharton provides complimentary sample boxes for qualified facade projects. Each sample box includes:

3 product samples (your choice of colors and finishes)
Full technical specification sheet
Installation guide with CAD detail drawings
Project reference list

Lead time: Samples shipped within 48 hours of confirmation.

Contact: apple@whartonstone.com | +86 139 2313 0743 | www.whartonstone.com
